Add the catchword(s) from the top of the following page to the footer

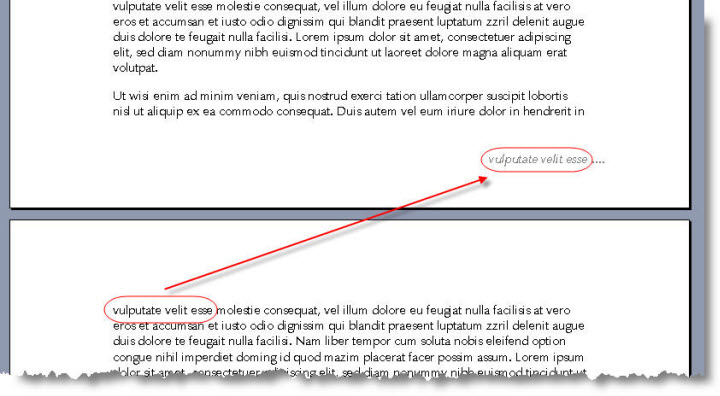

A questioner in a Word forum wanted a means of adding catchwords - the first word (or words) from the top of the following page - to the footer of his document, as shown in the example below. Word has no integral method of doing this - the closest it can manage is the Styleref field, but that can only reproduce information from the current page. A different method had to be found.

The solution I have produced requires that the first word(s) on each page after the first is(are) given a numbered bookmark in which the number relates to the page on which the footer will appear. i.e. the word(s) bookmarked on page 2 will be reproduced on page 1 and will have the corresponding number 1 in the bookmark name. For the sake of this exercise I chose to use the bookmark name Wordn where n is the number of the previous page.

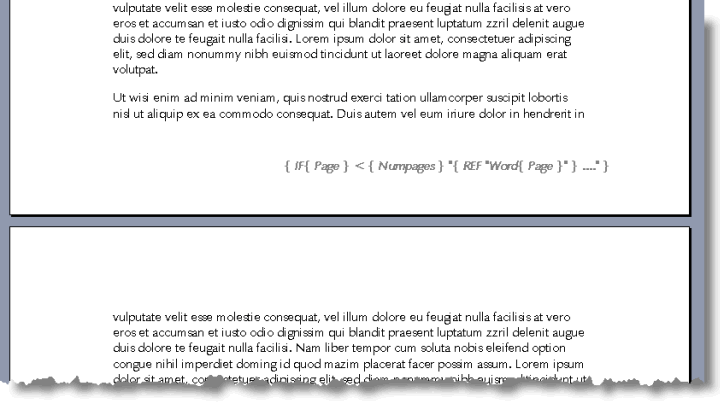

This information is then reproduced in the footer by means of a conditional field construction (second illustration).






The following macro will bookmark the first word(s) on each page but the first of the finished document. The macro prompts for the number of words to be bookmarked (three in the above example) - the default is 1.

Note:

The macro should not be run until all other editing of the document is completed as further editing will probably change which words are first on the pages, however I have included a macro to remove the bookmarks if the document requires further editing. Edit the document re-add the bookmarks and update the footer fields.

The Macro Code


Sub BookmarkCatchwords()
'Bookmarks the first word on each page
Dim Count As Long
Dim
x As Long
Dim
bName As String
Dim
sNumber As String
sNumber = InputBox("Bookmark how many words at the top of each page?", "Bookmark", 1)
Selection.HomeKey Unit:=wdStory
Count = ActiveDocument.BuiltInDocumentProperties("Number of Pages")
For x = 1 To Count - 1
    Selection.GoTo What:=wdGoToPage, Which:=wdGoToNext
    Selection.MoveRight Unit:=wdWord, Count:=sNumber, Extend:=wdExtend
    bName = "Word" & x
    ActiveDocument.Bookmarks.Add Range:=Selection.Range, Name:=bName
Next x
End Sub

Remove the bookmarks inserted by the previous macro



Sub BookmarkCatchwordsDelete()
Dim Count As Long
Count = ActiveDocument.BuiltInDocumentProperties("Number of Pages")
For x = 1 To Count
    On Error Resume Next
    ActiveDocument.Bookmarks("Word" & x).Delete
Next x
End Sub

Insert the field codes



You may find it simpler to manually insert the fields in the footer; however the following macro will insert the fields as shown in the second illustration. The fields are aligned right, but beyond that the formatting is that applied by the paragraph style into which the fields are inserted - by default the footer style.



Sub AddCatchwordsToFooter()
Dim sView As String

'record preferred view
sView = ActiveWindow.ActivePane.View.Type

'Select PrintLayout view
ActiveWindow.ActivePane.View.Type = wdPrintView

'Open footer
ActiveWindow.ActivePane.View.SeekView = wdSeekCurrentPageFooter
With Selection

    'Align fields to right margin
    .ParagraphFormat.Alignment = wdAlignParagraphRight

    'Insert the fields
    .Fields.Add Range:=.Range, Type:=wdFieldEmpty, _
    PreserveFormatting:=False
    .TypeText Text:="IF"
    .Fields.Add Range:=.Range, Type:=wdFieldEmpty, _
    PreserveFormatting:=False
    .TypeText Text:="Page"
    .MoveRight Unit:=wdCharacter, Count:=2
    .TypeText Text:=" < "
    .Fields.Add Range:=.Range, Type:=wdFieldEmpty, _
    PreserveFormatting:=False
    .TypeText Text:="Numpages"
    .MoveRight Unit:=wdCharacter, Count:=2
    .TypeText Text:=" """
    .Fields.Add Range:=.Range, Type:=wdFieldEmpty, _
    PreserveFormatting:=False
    .TypeText Text:="REF ""Word"
    .Fields.Add Range:=.Range, Type:=wdFieldEmpty, _
    PreserveFormatting:=False
    .TypeText Text:="Page"
    .MoveRight Unit:=wdCharacter, Count:=2
    .TypeText Text:=""""
    .MoveRight Unit:=wdCharacter, Count:=2
    .TypeText Text:=" ...."""
    .MoveRight Unit:=wdCharacter, Count:=2
End With

'Close the footer
ActiveWindow.ActivePane.View.SeekView = wdSeekMainDocument

'Return to the stored preferred view
ActiveWindow.ActivePane.View.Type = sView

'Update the fields
ActiveDocument.PrintPreview
ActiveDocument.ClosePrintPreview

'Ensure field results are displayed
ActiveWindow.View.ShowFieldCodes = False
End Sub


Note: If you do not know how to employ this code, see the tutorial elsewhere on this site.
